Cleanroom Sandwich Panel | Metal Cleanroom Wall Panel

Product Characteristics

Elegant Design

Smooth surface and refined structure for visually appealing workspaces.

Factory Prefabrication

Modular construction with assemblable design enhances efficiency and reduces on-site variability.

Superior Performance

Dustproof, anti-static, antimicrobial, acoustic & fireproof.

Customized Solutions

Tailored production to meet specific client requirements.

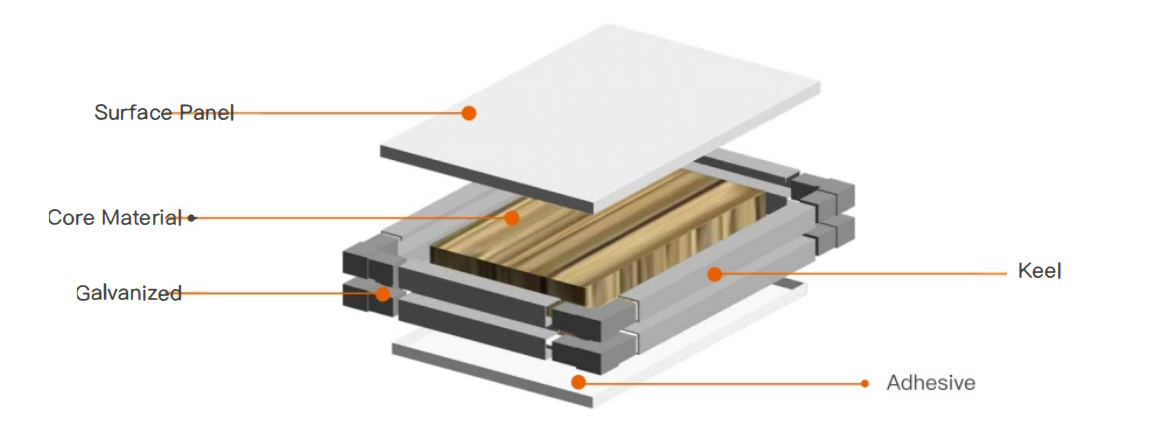

Sandwich Panel

Surface Material

Easywall Co., Ltd. utilizes premium domestically-sourced color-coated steel panels. These panels employ cold-rolled steel sheets (electro-galvanized/hot-dip galvanized or aluminum-zinc alloy coated) as substrates, which undergo a rigorous production process including: Degreasing → Phosphating → Chromate treatment → Continuous roller coating of organic polymers → Baking and cooling.

Product Advantages: High structural strength / Superior corrosion resistance / Aesthetically refined appearance

Sandwich Panel

Stainless Steel Sheet

Thickness: 0.5mm / 0.6mm, Width: 1000mm / 1200mm, Surface Material: 304/2B

Finish: Front side: Satin finish / Back side: Color-coated

Key Advantages: Enhanced chemical resistance / Reduced gloss for refined aesthetics / Superior design integration

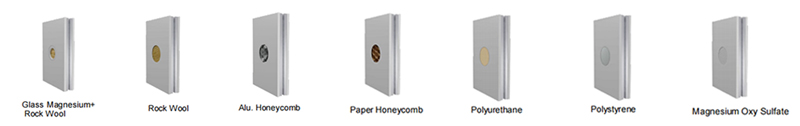

Refill Material

Multiple core materials available for selection

Metallic Sandwich Panel

Adhesive

2K PU Adhesive

Our selected adhesive is SGS-certified and complies with European Standard N71 Part 3 for environmental requirements. It demonstrates exceptional durability under extreme conditions: Temperature cycling tests: -20 °C to +60°C; Baking duration: 12 hours per cycle; 100 test cycles with no bond strength degradation

Easywall Co., Ltd. provides innovative cleanroom partition solutions for pharmaceutical, electronics, food processing, chemical, and cosmetics industries through dedicated R&D and manufacturing.

Specifically for the biopharmaceutical sector, we have developed Anti-VHP Sandwich Panels(Aspticlean®) that offer: High resistance to vaporized hydrogen peroxide (VHP) sterilization, Superior corrosion protection, Reduced maintenance and replacement cost for cleanrooms requiring frequent H₂O₂ decontamination cycles.

Product Parameter

	Asepticlean®	HPGI	PPGI
Total Thickness	0.75mm	0.6mm	0.6mm
Surface Layer Thickness	150–180µm	60–100µm	20–35µm
Surface Material	PVC	PE	PE
Material Thickness	0.55mm	0.55mm	0.576mm
Zinc Coating Weight	180g/sqm	120g/sqm	60g/sqm
Topcoat Thickness	0.015mm	0.03mm	0.015mm
VHP Resistance	Super (35 Days)	General (3 Days)	Poor (0 Days)

	Specification(mm)
Width	980 / 1180
Length	Wall Panel:10–9000; Ceiling:100–3500
THK.	50 / 75 / 100
Top layer thk.	0.4 – 0.6
Top layer material	SS Steel/Titanium-zinc Panel
Coating	PE / PVDF / HDP
Core Material	Rock wool(Capacity:100–120kg/m³) / Magnesium oxide Core / Gypsum / Alu. Honeycomb Core / Paper Honeycomb Core
Keel thk.	0.8
Corner	0.5(galvanized)
Protective Film	0.06mm / 0.08mm

Note: We offer customization of non-standard specifications to meet your specific needs.

Product Parameter

ltem	Rock Wool	Glass Magnesium +Rock Wool	Alu.Honeycomb
Panel Weight	18kg/m²	17-23kg/m²	10-15kg/m²
Core Material	100-120kg/m³	5mm
Sound Insulation	25db	30db	18db
Flexural Capacity	1.1KN/m²	1.25KN/m²	1.0KN/m²
Thermal Conductivity	-	1.033	-
Water Repellency Efficiency	≥98%	-	-
Fire Resistance Rating	30min	60min	41min

ltem	Specification(mm)
Width	980/1,180
Length	Wall Panel100-9,000;Ceiling100-3,500
THK.	50/75/100
Top layer thk.	0.4-0.6
Top layer material	SS304,Galvanized sheet
Coating	PE/PVDF/HDP
Core Material	Rock wool(Capacity100-120kg/m³)/Magnesium oxidel Gyosum/Alu.Honeycomb/Paper Honeycomb
Keel thk.	0.8
Comer	Galvanized steel
Protective Film	0.06mm/0.08mm

Note: We offer customization of non-standard specifications to meet your specific needs.

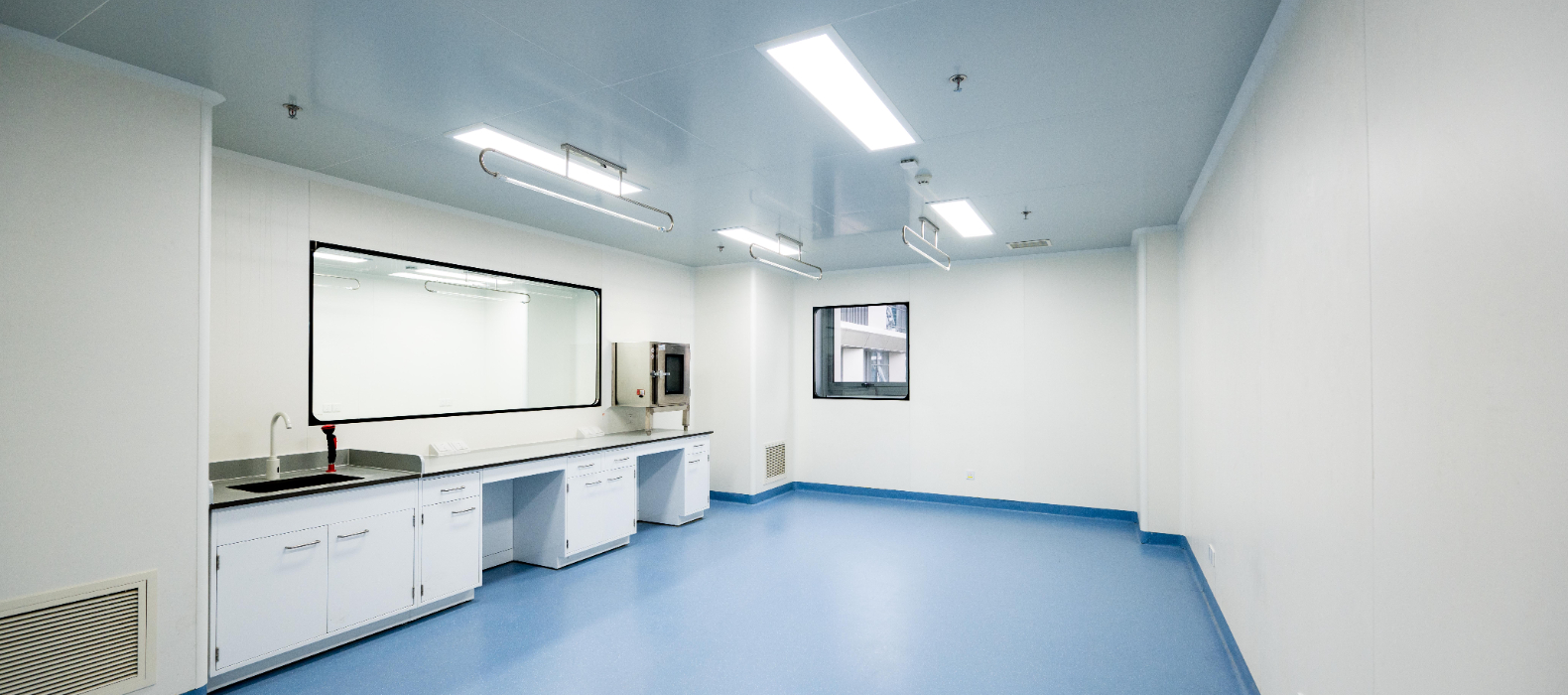

Applications
