Cleanroom Panels

Clean Room Wall Panels: Modular Systems Engineered for Contamination Control

Clean Room Wall Panels form the structural backbone of any controlled environment, separating contaminant-sensitive processes from the outside world while maintaining precise standards for air cleanliness, pressure, and hygiene. Built from insulated core materials such as rock wool, honeycomb aluminum, or PU foam sandwiched between steel, galvanized, or HPL facings, these panels combine structural strength with airtight sealing to meet ISO Class 1–9 cleanliness requirements across pharmaceutical, electronics, food, and laboratory environments.

Easywall manufactures Clean Room Wall Panels and complete modular cleanroom wall systems for pharmaceutical plants, laboratories, healthcare facilities, electronics manufacturing, food processing and other controlled environments.

Our cleanroom panels are designed to create smooth, sealed and easy-to-clean interior surfaces while supporting efficient installation, equipment integration and future cleanroom expansion.

Instead of supplying only one standard panel structure, Easywall provides different surface materials, core materials, thicknesses and system configurations according to the cleanroom application, fire protection requirements, cleaning methods, insulation requirements and project drawings.

● Modular and factory-prefabricated construction
● Custom panel surfaces, cores and dimensions
● Coordinated cleanroom doors and windows
● Multiple insulation and fire-performance options
● Drawing-based customization for project requirements
● Suitable for pharmaceutical, laboratory, electronics and food applications

Key Performance Standards

A reliable Cleanroom Wall System is judged on a few non-negotiable benchmarks:

Airtightness – sealed joints that prevent particle infiltration between panels

Fire resistance – Class A rated cores for occupant and asset safety

Corrosion & moisture resistance – suited to washdown and sterile environments

Dimensional stability – flush, seamless surfaces that hold up after years of thermal cycling

Fast, tool-light installation – concealed cam-lock or tongue-and-groove connections for quick assembly, disassembly, and reconfiguration

Core Advantages of Modular Design

A true Modular Clean Room Panel system delivers flexibility without compromising build quality:

1. Prefabricated, pre-cut, and pre-finished panels cut on-site labor and construction time compared to traditional partition work

2. Sealed panel cores keep bacteria, mold, and dust from taking hold inside the wall cavity

3. Layouts can be reconfigured or expanded as production lines change, without structural rework

Cleanable Surface Design

Cleanroom wall surfaces should minimize areas where dust and contaminants can accumulate.

● Smooth and easy-to-wipe surfaces
● Low-porosity surface material options
● Suitable surfaces for frequent cleaning and disinfection
● Reduced joints and unnecessary surface projections

Sealed Modular Construction

A modular structure simplifies cleanroom construction and helps create a continuous enclosure.

● Factory-prefabricated wall sections
● Controlled panel dimensions
● Sealed panel joints
● Reduced on-site cutting and modification
● Easier expansion and reconfiguration than conventional masonry walls

Integrated Openings

Doors, windows and equipment openings can be considered before panel production.

● Cleanroom door openings
● Observation window openings
● Pass box interfaces
● Electrical and utility penetrations
● Return-air and ventilation openings
● Cleanroom equipment interfaces

Where These Panels Are Used？

This flexibility makes the system suited to a wide range of controlled environments, including:

● GMP pharmaceutical plants

● Semiconductor and wafer fabs requiring sub-micron particle control

● Hospital operating theatres and medical facilities

● Food processing lines

● Research laboratories needing quick reconfiguration between projects

Choose the Right Modular Clean Room Panel

Different cleanroom applications require different panel structures. Easywall provides several Modular Clean Room Panel solutions so buyers can select the appropriate combination of hygiene, fire performance, corrosion resistance, insulation and cost.

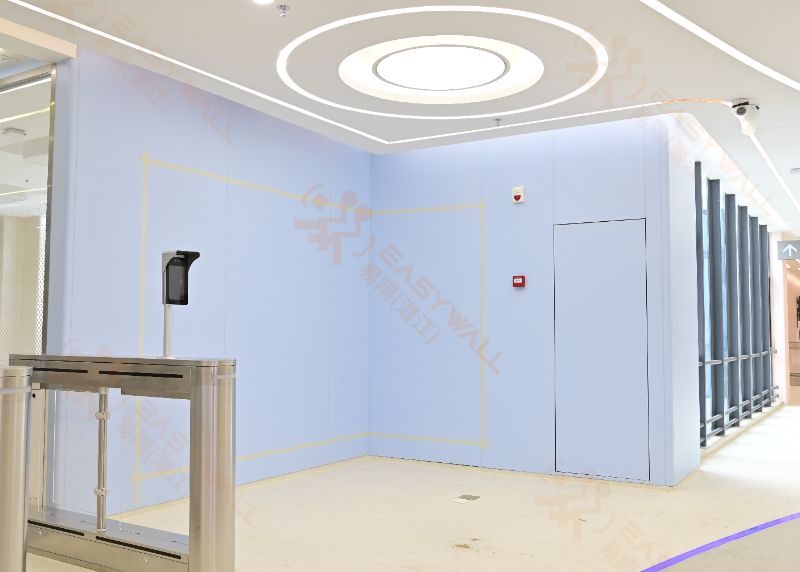

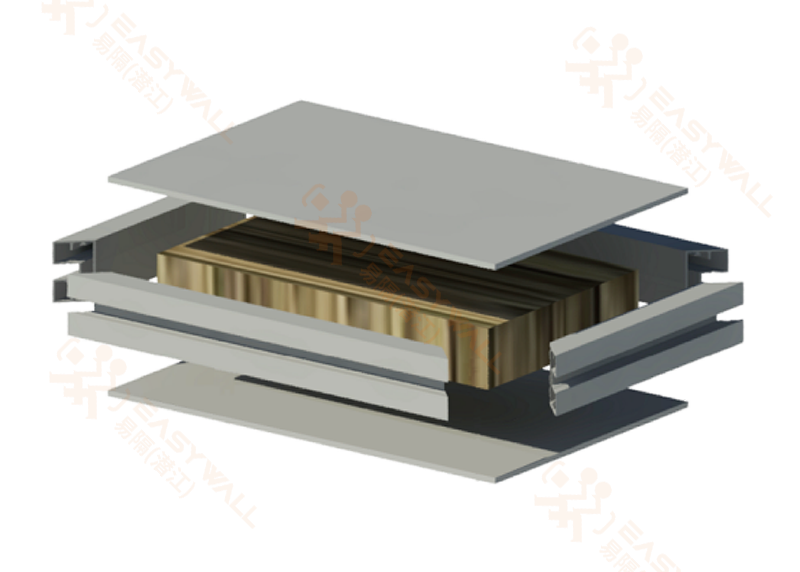

Medisurf® Cleanroom Panel

Medisurf® panels use a high-density asbestos-free calcium silicate substrate and are suitable for cleanroom and medical environments requiring hygienic surfaces, durability and architectural finishes.

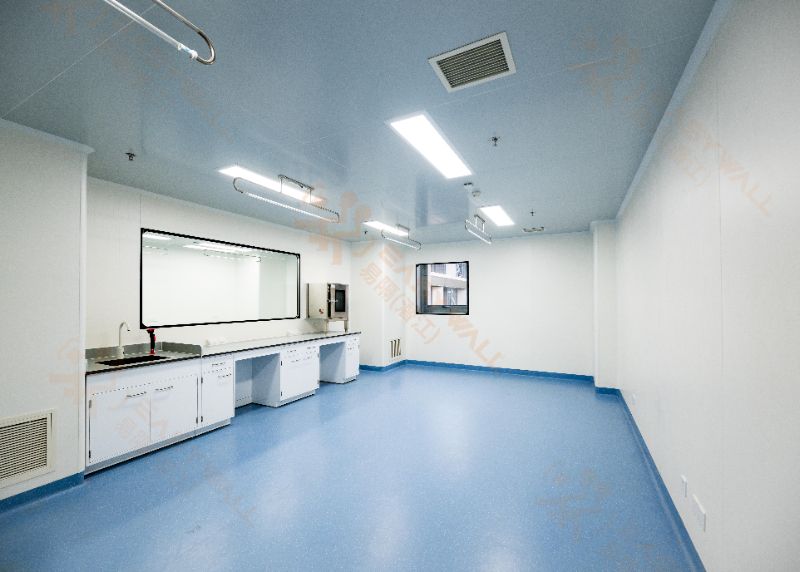

Metallic Sandwich Panel

Metal-faced Cleanroom Sandwich Panels are commonly used for pharmaceutical, electronics, industrial and temperature-controlled cleanrooms.

Different core materials can be selected according to fire protection, thermal insulation and structural requirements.

● Rock wool core
● Paper honeycomb core
● Aluminum honeycomb core
● EPS core
● PU or PIR insulation core
● Other project-specific core materials

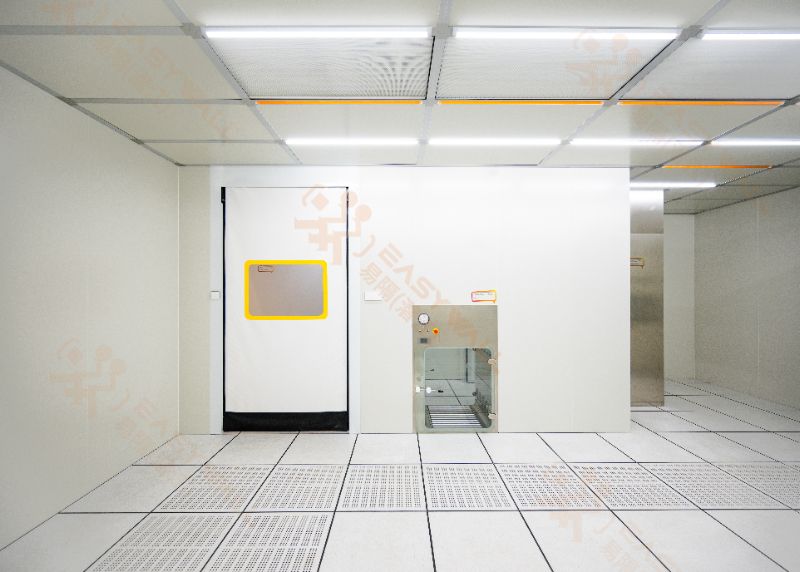

Fiber Glass Panel

Fiberglass cleanroom panels are suitable for environments requiring enhanced resistance to moisture and corrosion.

Typical applications include:

● Laboratories
● Wet-cleaning areas
● Food processing environments
● Chemical-related controlled rooms
● High-humidity cleanroom applications

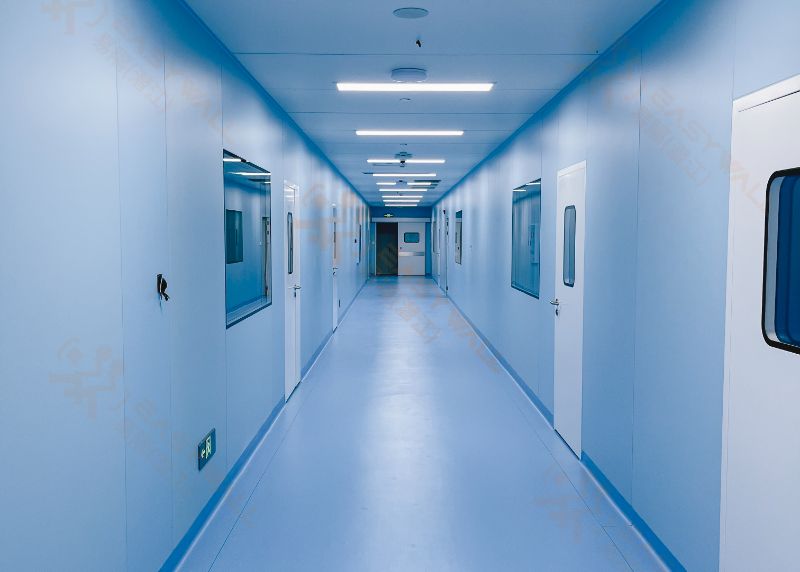

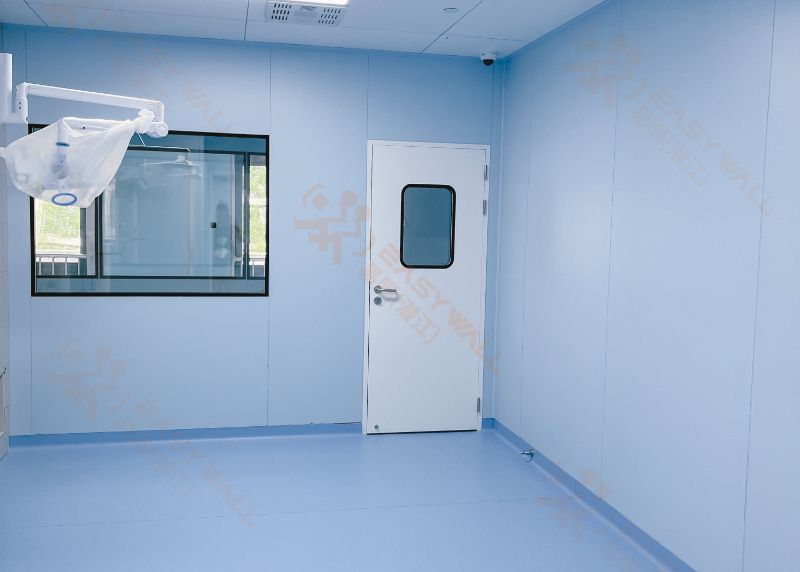

Electroplated Sandwich Panel

Electroplated sandwich panels can be used in specialized medical and cleanroom environments where specific surface appearance and functional requirements need to be considered.

They can be integrated with cleanroom doors, windows and other interior components according to the project layout.

Why Choose Easywall

● Factory-direct manufacturing – a 23,300 m² production base with two automated lines and an in-house R&D lab, controlling every stage from raw material sourcing to panel lamination for shorter lead times and pricing without middleman markups

● Full customization – core material, thickness, surface finish, color, and panel dimensions matched to your cleanliness class, budget, and site conditions rather than a fixed catalog size

● Certified quality – ISO9001 and ISO14001 certified, with experience serving 38+ countries

● Ongoing support – technical support training, prompt dispatch, and after-sales maintenance service

● Full product range – including Medisurf® panels, metallic and electroplated sandwich panels, and fiberglass panels, giving you a dependable path from factory floor to finished cleanroom

Cleanroom Sandwich Panel Core and Surface Options

The performance of a Cleanroom Sandwich Panel depends on the complete combination of panel surface, insulation core, thickness, joint construction and installation method.

Core Material Options

● Rock wool for projects with higher fire-performance requirements
● Paper honeycomb for lightweight panel construction
● Aluminum honeycomb for lightweight rigidity
● EPS for selected economical insulation requirements
● PU and PIR for enhanced thermal insulation
● Magnesium-based and customized core solutions

Surface Material Options

● Pre-painted steel
● Galvanized steel
● Stainless steel
● HPL surface
● Fiberglass surface
● Specialized hygienic and architectural finishes

Easywall can recommend the appropriate panel combination according to cleanroom use, cleaning conditions, room temperature, fire requirements and project budget.

Typical Modular Clean Room Panel Specifications

Easywall supports different panel thicknesses and configurations according to project requirements.

For example, Easywall Medisurf® panel systems include E50 and E84 configurations.

E50

● Panel thickness: 50 mm
● Standard finished size options: 4 × 8 ft, 4 × 9 ft and 4 × 10 ft
● Composite surface options available according to application

E84

● Panel thickness: 84 mm
● Standard finished size options: 4 × 8 ft, 4 × 9 ft and 4 × 10 ft
● Suitable for projects requiring a thicker wall structure

Other panel dimensions, materials and structures can be discussed according to project drawings and technical requirements.

Clean Room Modular Wall Systems for Different Industries

Pharmaceutical and Biotechnology

Easywall Clean Room Modular Wall Systems can be configured for pharmaceutical production environments where hygiene, cleaning and controlled room conditions are important.

● Pharmaceutical production rooms
● Formulation areas
● Filling rooms
● Packaging rooms
● Weighing and dispensing areas
● Pharmaceutical laboratories

Electronics and Semiconductor

Cleanroom wall systems can also be used in particle-controlled production environments.

● Semiconductor manufacturing
● Electronic component assembly
● Precision manufacturing
● Optical production
● Controlled inspection areas

Healthcare and Laboratories

Easywall modular panels can be combined with cleanroom doors, observation windows and related equipment for medical and laboratory projects.

● Hospital controlled areas
● Medical laboratories
● Research laboratories
● Testing facilities
● Disease control facilities

Food and Controlled Processing

Cleanable modular walls are also suitable for food and hygiene-sensitive production environments.

● Food processing rooms
● Packaging areas
● Preparation rooms
● Temperature-controlled rooms
● Washable production areas

A Complete Cleanroom Wall System

One common problem in cleanroom construction is purchasing wall panels, doors, windows and cleanroom equipment from different suppliers.

If the dimensions and interfaces are not coordinated correctly, additional on-site cutting and sealing may be required.

Easywall provides more than Modular Clean Room Wall Panels. Our product range allows the wall system to be coordinated with other cleanroom components from the design stage.

● Cleanroom wall panels
● Cleanroom ceiling panels
● Cleanroom doors
● Cleanroom observation windows
● Pass boxes
● Air showers
● Mist showers
● Laminar air flow units
● Negative weighing booths
● Other cleanroom equipment

This integrated supply capability helps reduce dimensional conflicts between wall panels and cleanroom equipment.

How to Select Clean Room Wall Panels

Choosing cleanroom panels only according to price or panel thickness may result in unnecessary cost or unsuitable performance.

The following information should be considered before selecting a panel system.

Cleanroom Application

The panel requirements for a pharmaceutical cleanroom may differ from those for electronics manufacturing, laboratories or food processing.

Cleaning Method

Consider how frequently the wall surfaces will be cleaned and what cleaning or disinfecting chemicals will be used.

Fire Requirements

Different core materials provide different fire-performance characteristics. Local building codes and project specifications should be reviewed before selecting the panel core.

Temperature and Humidity

Temperature-controlled rooms may require enhanced thermal insulation.

Moisture and Corrosion

Wet or corrosive environments may require fiberglass, stainless steel or other corrosion-resistant surface materials.

Cleanroom Layout

Doors, windows, pass boxes, ventilation openings and equipment interfaces should be coordinated with the wall system before production whenever possible.

Future Expansion

If the production area may be expanded later, a Modular Clean Room Panel system can make future modification easier than conventional fixed wall construction.

Plan Your Cleanroom Wall System with Easywall

If you are sourcing Clean Room Wall Panels, Modular Clean Room Panels or complete Clean Room Modular Wall Systems, Easywall can support your project from panel selection to customized production.
