Pulsed xenon light is the instantaneous release of electrical energy stored in ultra large capacity capacitors. Through high-purity xenon gas inside a high-voltage ionization lamp tube, it generates a strong pulsed light with a duration of only 10-100ms, an energy of up to 2J/㎠, and more than 200 times higher than ultraviolet lamps. It can effectively destroy various pathogens.
Pulse xenon light technology has shortened the disinfection time from more than 25 minutes for ultraviolet radiation to less than 3 minutes, and has a certain penetration ability, making it more suitable for disinfecting rough surfaces.
Advantage
The xenon light transmission window is mainly composed of a transmission box, a pulsed xenon light lamp system, and an electrical control system.
Compared to traditional ultraviolet transmission windows, it has the following advantages:
● 3-minute rapid sterilization with a sterilization rate of 99%;
● Pulsed strong light full spectrum sterilization has a killing effect on Escherichia coli, Staphylococcus aureus, Bacillus subtilis, and Aspergillus niger;
● Mechanical interlocking and electronic interlocking;
● Multi functional control of touch screen;
● Traceable data.

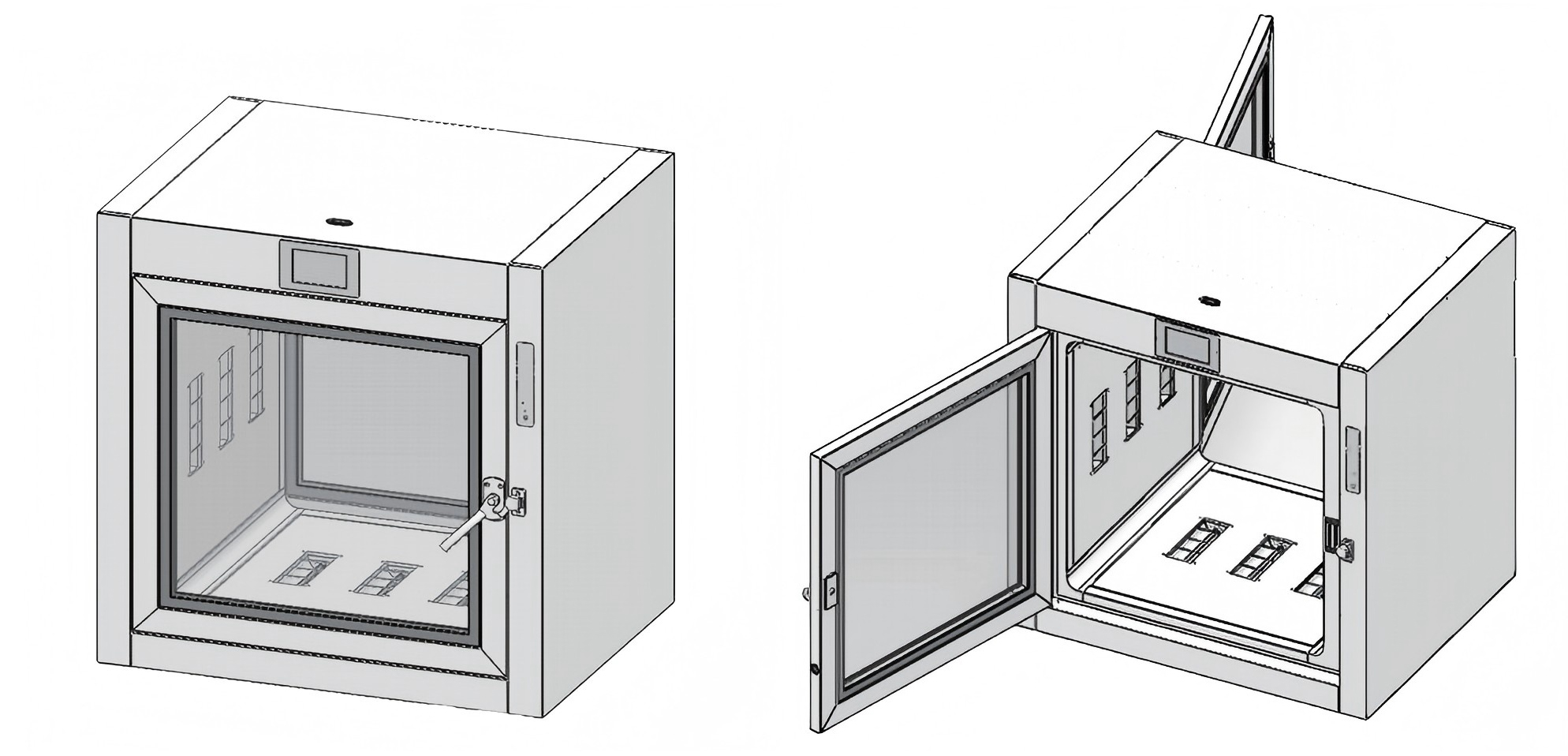

Product Overview
Technical Description
1. Mechanical section description
| Performance Parameter | ||||
| No. | Content | Parameter Description | ||
| 1 | Model | SP-MPB800-800 | ||
| 2 | External dimensions | 1050860*1300mm(L×W×H) | ||
| 3 | Size of workspace | 800*800*800mm(L×W×H) | ||
| 4 | Sterilization temperature | ℃ | ||
| 5 | Door sealing method | Sealing strp | ||
| 6 | Internal roughness | Ras0.4um | ||
| Technical Configuration | ||||
| No. | Name | Model/Specification/Material | Quantity | |
| 1 | Main materials inside the box | SUS3041.2mm,MIRROR FINISH | N/A | |
| 2 | Outer shell plate | SUS 3041.2mm,Wire drawing processing | N/A | |
| 3 | Skeleton and reinforcement bars | SUS 3041.2mm | N/A | |
| 4 | Interior angle of the box | R=58 | N/A | |
| 5 | Inlet and outlet doors | SUS 304 square tube+double-layer 5mm tempered glass | 2 | |
| 6 | Material rack | According to the design | ||
| Advantages and Characteristics | ||||
| 1 | The inner cavity is welded with 304 stainless steel mirror reflective plate to ensure the surface smoothness of the box,easy deaning and sterilization; |
|||
| 2 | The rounded corner design inside the boxis more conducive to deaning and sterilization,ensuring sterility requirements; |
|||
| 3 | The sterilization frame inside the transfer window can be customized according to the needs of PartyA, facilitating the reasonable loading and effecive sterilization of stenilized items. |
|||
2. Pulsed xenon light system
| Technical Configuration | |||
| No. | Name | Model/Specification/Material | Quantity |
| 1 | Left and right sides+bottom | 165 pulse strong light sterilization module | 9 |
| 2 | Top | 200W circular magnetic energy lamp | 1 |
| Advantages and Characteristics | |||
| 1 | Sterilization range:bacteria,viruses,spores,nucleic acids,proteins,etc | ||
| 2 | Sterilization and leak testing are interlocked,and if the leak test fails,sterilization cannot be carried out. | ||
| 3 | Bacterial killing efficiency:99%bactericidal rate in 3 minutes (Staphylococcus aureus) | ||
| 4 | Spore sterilization eficiency:99%sterilization rate in 3 minutes (Bacillus subtilis) | ||
| 5 | Total sterilization rate:≥99% | ||
We provide technical support and training for cleanroom panel products to help customers better understand product performance and proper usage methods;
We provide comprehensive upgrade services for cleanroom panel products to continuously enhance their performance characteristics and quality standards.
