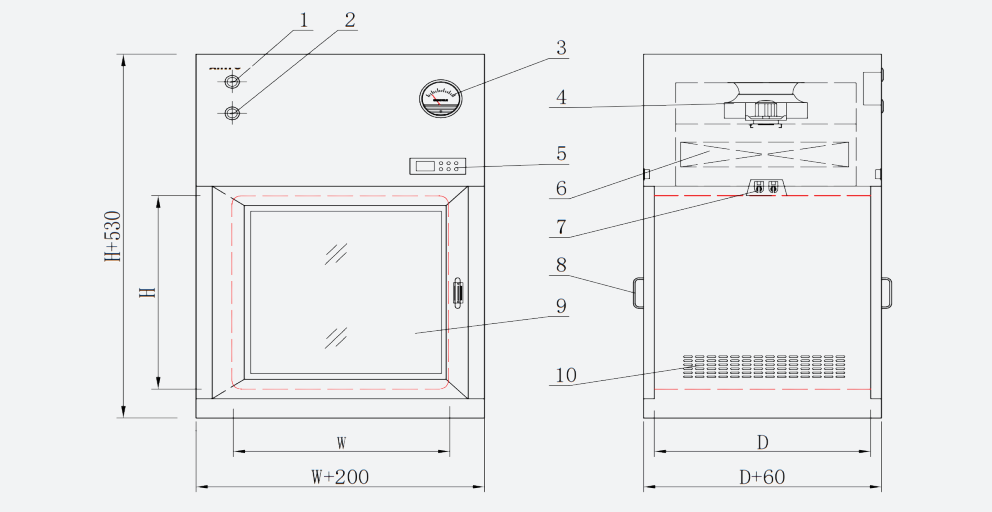

Specification
1. PAO injection port
2. PAO test port
3. Differential pressure gauge (0–500 Pa)
4. Fan
5. LCD Control Panel
6. H14 Gel Seal HEPA
7. UV lamp
8. SS 304 Handle
9. Built-in double-glazed door
10. Return Air Grill
11. Power socket 220v, 50Hz / 60Hz / or as required

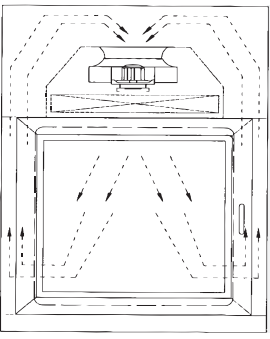

Working Principle
In automatic mode, when the two doors of the pass box are closed, the fan automatically starts working.
1. The air flows through the primary filters on both sides of the pass box.
2. The air flows to the top HEPA box, then passes through the HEPA filter and flows back to the working area.
3. Once the fan starts working, the UV lamp is turned on automatically.

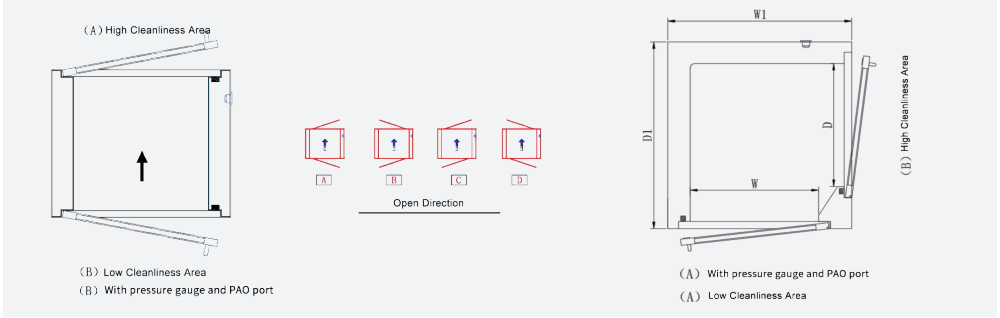

Open way

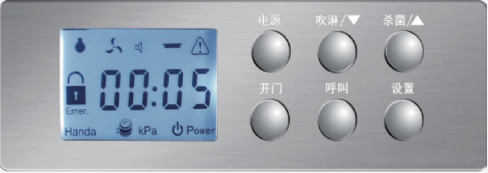

Integrated circuit controller, plug and play, double-sided stainless steel panel with LCD display, multiple operating modes can be switched freely to ensure safe and convenient operation.
| Ptroduct Size (W*D*H) | External Dimensions(W*D*H) | |
| Dynamic Pass Box | Static Pass Box | |
| 450*450*400 | 650*510*930 | 650*510*560 |
| 500*500*500 | 700*560*1030 | 700*560*660 |
| 600*600*600 | 800*660*1130 | 800*660*760 |
| 700*700*700 | 900*760*1230 | 900*760*860 |
| 800*800*800 | 1000*860*1330 | 1000*860*960 |
| 900*900*900 | 1100*960*1465 | 1100*960*1095 |
| For inner dimensions exceeding W800×H800, double-leaf doors shall be provided on both sides. | ||
We provide technical support and training for cleanroom panel products to help customers better understand product performance and proper usage methods;
We provide comprehensive upgrade services for cleanroom panel products to continuously enhance their performance characteristics and quality standards.
