A mobile cleanroom trolley that maintains ISO Class 5 (Class A) conditions for sterile material transfer in pharmaceuticals, biotech, and medical industries.
Advantages
● H14 HEPA filters (≥99.995% @ 0.3μm)
● Unidirectional airflow (vertical/horizontal)
● ISO 5 standard
● Locking casters for clean zone movement (B to A)
● For sterile filling, isolator docking, lab transfers
● Built-in sensors: airflow, pressure, real-time particle detection
● Auto-purge mode for instant ISO compliance
● Complies with GMP/FDA/EU GMP
● Sterilizable stainless steel construction
Applications
● Pharma: Aseptic filling, lyophilizer loading, isolator docking
● Biotech: Cell therapy transfer, vaccine production
● Med Device: Sterile assembly, packaging transfer
● Labs: High-purity sample transfer, sterile operations
● Electronics: Precision component dust-free handling
Technical Parameters (Example)
| Parameter | Value |
| Class | ISO 5 (Grade A) |
| Airflow | Vertical/Horizontal Laminar |
| Velocity | 0.45±0.1 m/s (adjustable) |
| Workzone | 800×600mm (customizable) |
| Filter | H14 HEPA (99.995% @0.3μm) |
| Noise | ≤62 dB(A) |
| Power | 220V/50Hz (or Li-ion mobile) |

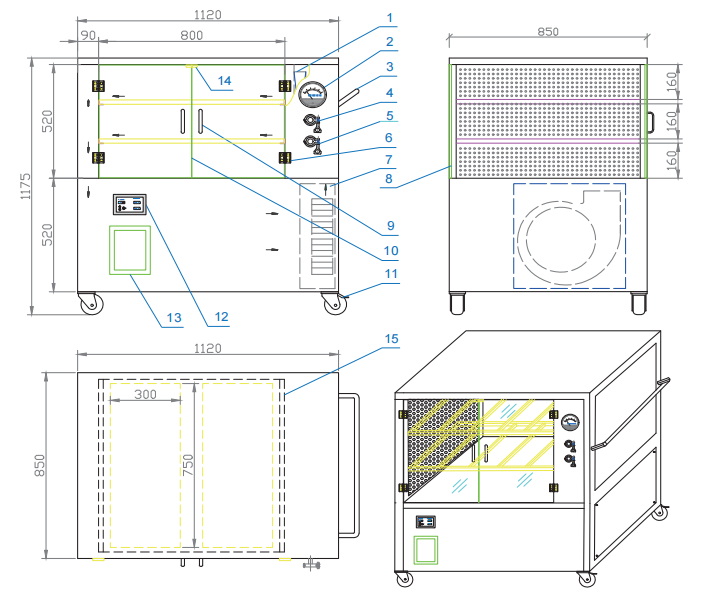

Schematic Diagram
Component List
| No. | Component | SPC. | QTY. |
| 1 | HEPA Filter | AAF, H14 | 1 |
| 2 | Differential Pressure Gauge | Dwyer, 0-500Pa | 1 |
| 3 | SS Push Handle | — | 1 |
| 4 | DOP Port | — | 1 |
| 5 | DOP Sampling Port | — | 1 |
| 6 | SS Hinge | — | 4 |
| 7 | Centrifugal Fan | — | 1 |
| 8 | Acrylic Cover | T=8mm | 2 |
| 9 | SS Handle | — | 2 |
| 10 | Acrylic Door Panel | T=8mm | 2 |
| 11 | SS Caster | 3 inch, 2 with brakes | 4 |
| 12 | LCD Control Panel | — | 1 |
| 13 | UPS Power Supply | — | 2 |
| 14 | Magnetic Door Stop | — | 1 |
| 15 | Layer | SUS304 | 2 |
Specifications
● Material: Stainless steel (SUS304, 1.2mm thick)
● Filtration: HEPA filter (≥99.995% efficiency, Class C or higher)
● Backup Power: 4-hour UPS backup
● Pressure Gauge: Analog differential pressure gauge (0-250 Pa range)
● Panels: Front: Acrylic door; Rear: Acrylic cover
● Accessories: 5 medicine trays (700×300×80mm)
We provide technical support and training for cleanroom panel products to help customers better understand product performance and proper usage methods;
We provide comprehensive upgrade services for cleanroom panel products to continuously enhance their performance characteristics and quality standards.
